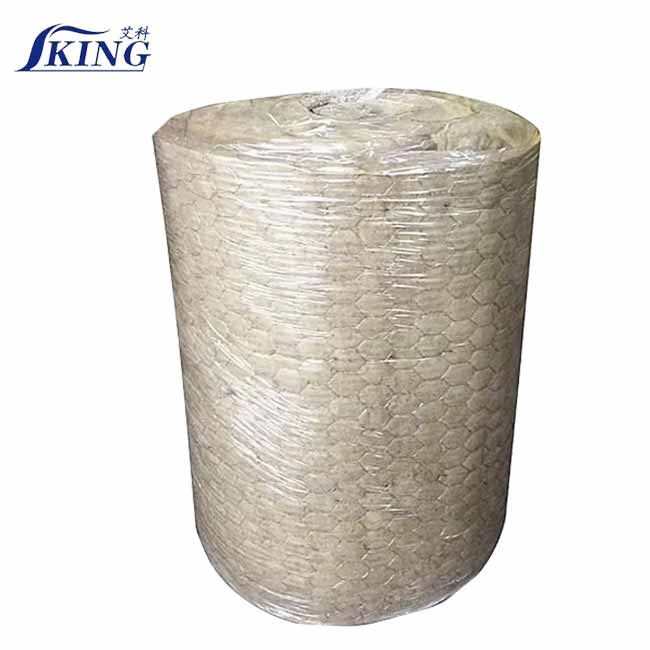

Rock Wool Blanket with Wire Mesh
1. Specification
Lengh:5-30m
Width:0.6m/0.9m/1.2m
Density:40kg/m³-180kg/m³
2. Minimum Order Quantity (MOQ)
One 40HQ Container (Loading quantity depends on Specs)
3. Applications of Rock Wool Blanket with Wire Mesh

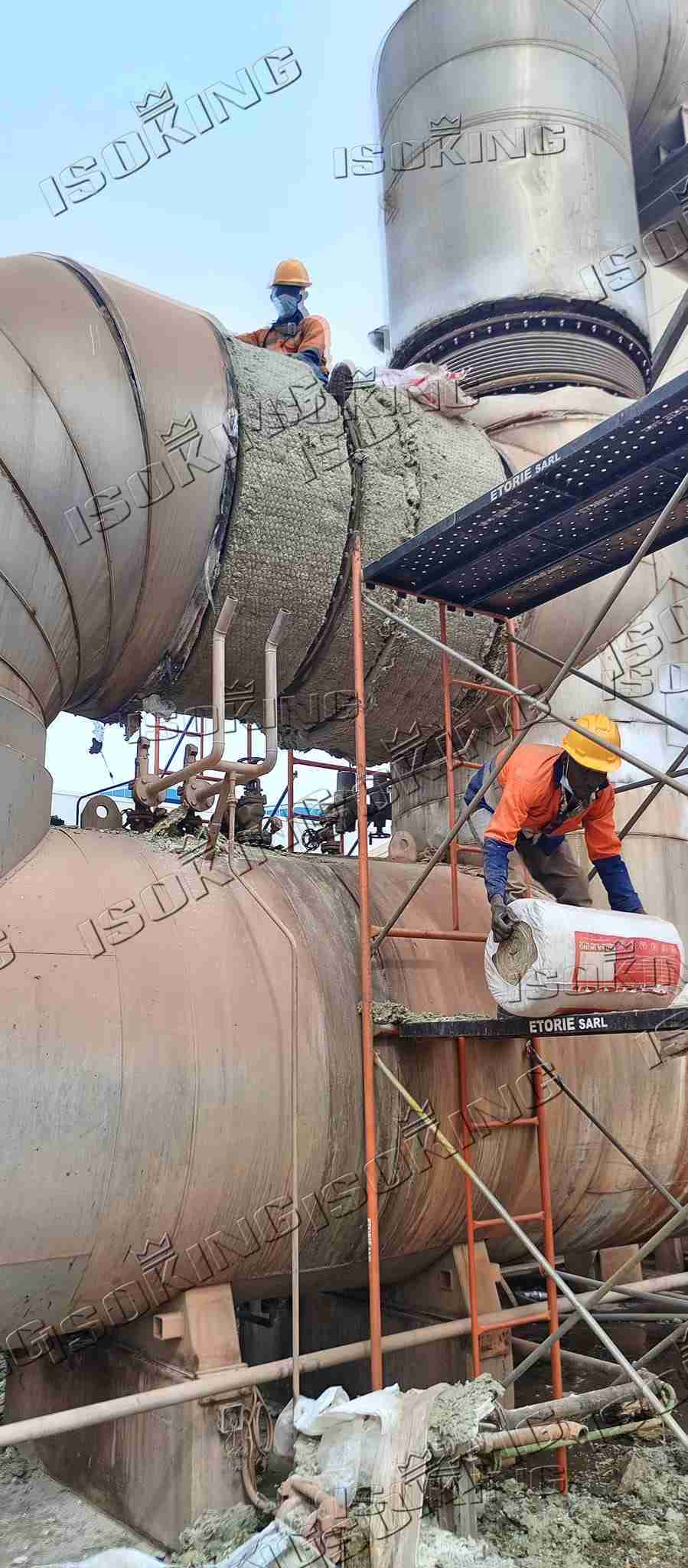

a. Industrial pipeline insulation
b. Building insulation for roofs and ceilings
c. Equipment and plant insulation
Our ISOKING's rock wool blanket with wire mesh is a flexible insulation material that is used for thermal insulation, fire protection, and sound control in industrial applications. It is manufactured from natural rock melted at high temperature and processed into mineral fibers, then stitched with a galvanized wire mesh to improve strength and installation stability.
This product is widely used on pipes, ducts, equipment, and large surface areas where both insulation performance and mechanical support are required.
a. Thermal Insulation: Dense air pockets between fibers effectively block heat transfer.
b. Fire Protection: Rock wool is non-combustible and maintains structural stability at high temperatures.
c. Mechanical Support: The wire mesh reinforces the blanket, making it easier to install on ceilings, pipes, or equipment surfaces.
| Thickness(mm) | Width(m) | Length(m) | Density(kg/m³) | Thermal Conductivity | Fireproof Grade |
| 25-150 | 0.6/0.9/1.2 | 3-6 | 40-180w/mk | ≥0.036 | A1 |
a. Excellent Thermal & Acoustic Insulation: Uniform fiber distribution provides superior heat and sound resistance.
b. Stable Structure: Wire mesh reinforcement prevents deformation and falling of the blanket.
c. Easy Installation: Can be cut, bent, and adapted to various industrial or building surfaces.

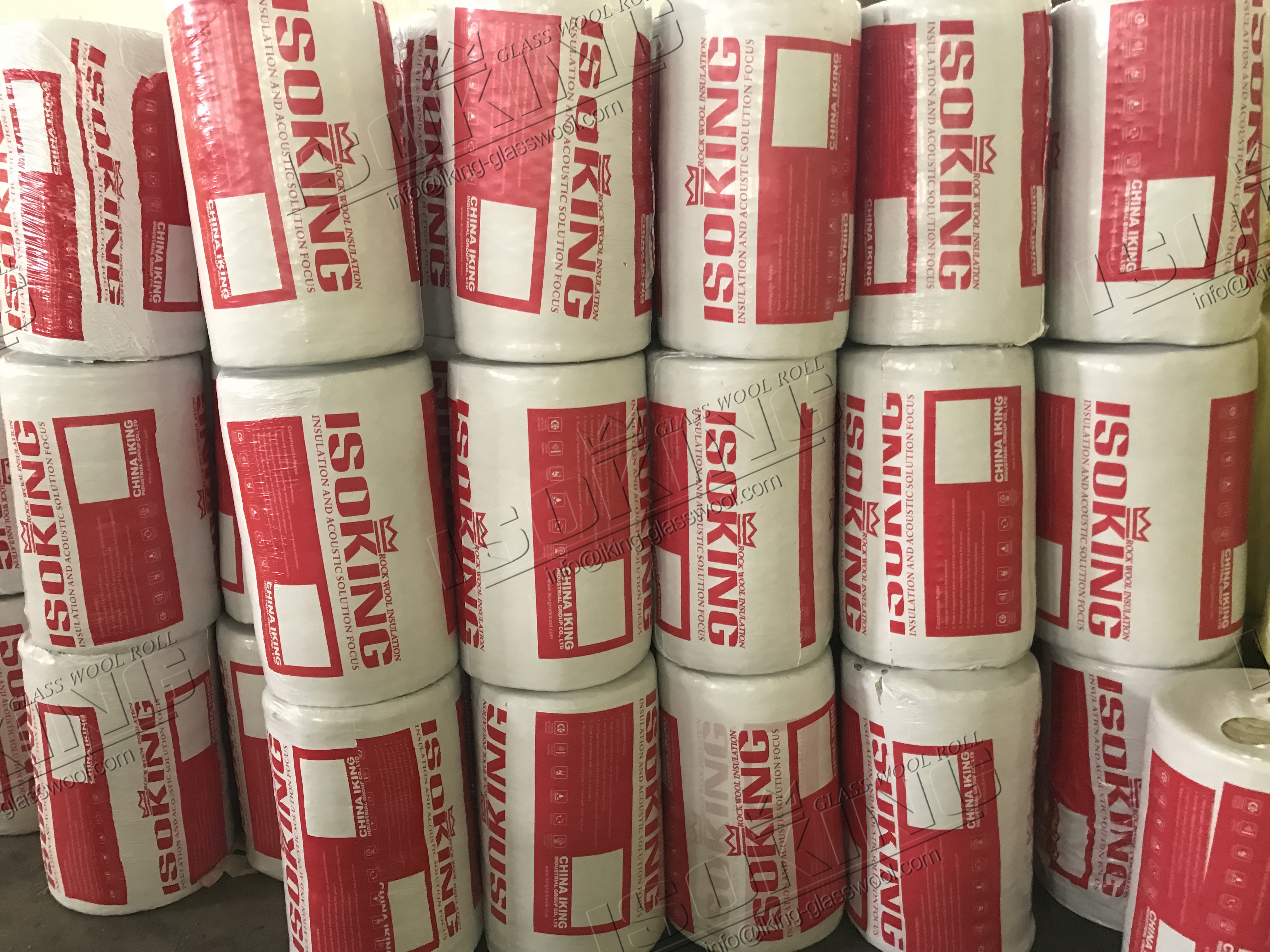

a. Packaging: Our ISOKING’s standard export packaging—each roll is wrapped in moisture-proof plastic film, then packed in cartons or secured on pallets to prevent damage.
b. Shipping: Clients can choose both sea and land transportation. The packaging is moisture-resistant and pressure-bearing, guaranteeing the product arrives in intact condition at your destination.
a. Construction companies
b. Industrial equipment installers
c. Pipe insulation contractors
d. Insulation material distributors
Q: What is the maximum temperature the rock wool blanket can withstand?
A: Generally, it can withstand temperatures up to 750℃. The exact tolerance may vary slightly based on the product’s thickness and density.
Q: How should it be cut and fixed?
A: Standard cutting tools are sufficient for trimming. Secure it to pipes or frames using ties, clips, or additional wire for a firm fit.
Q: What is its fire rating?
A: It’s classified as A-grade non-combustible (A1 grade as per the table). We can provide official test reports to verify this rating upon request.
China IKING Industrial Group Co., Ltd. was established in 2005 and is located in Tianjin. We are one of the leading thermal insulation material manufacturers in China.
Our products are widely used in construction and industrial fields. The main products are rock wool, glass wool, and ceramic fiber. The working temperature of the products ranges from 400 degrees to 1400 degrees. It is precisely because of the diversity of products that we can we provide customers with one-stop insulation product services..[ read more ]
